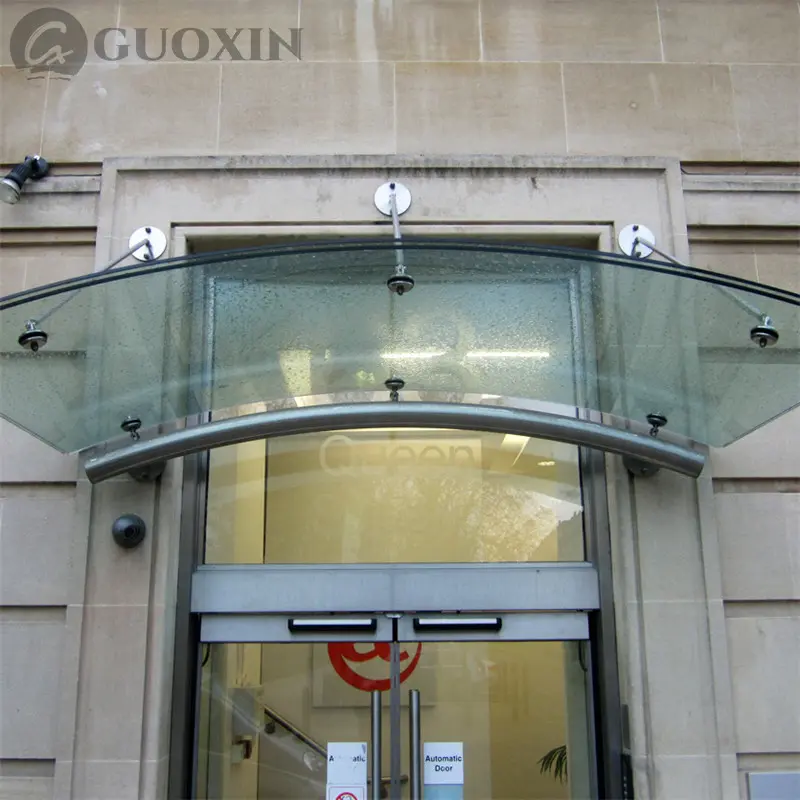

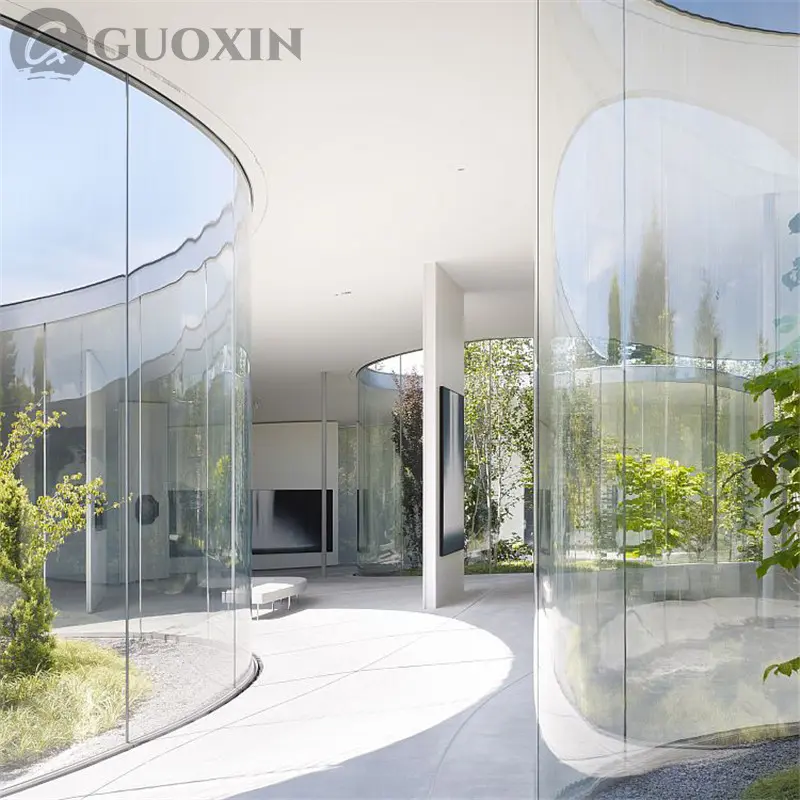

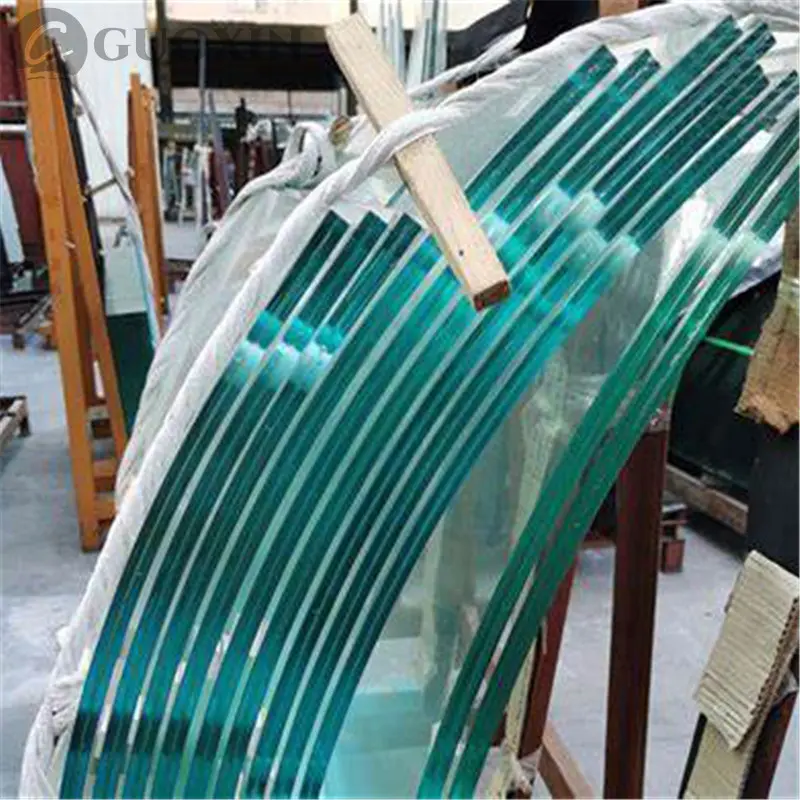

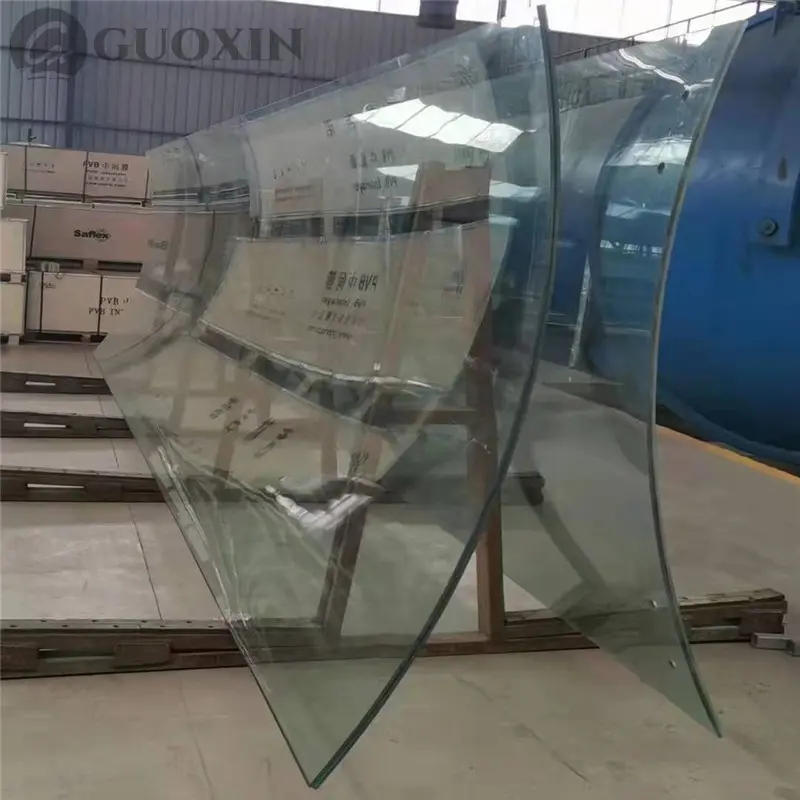

Through the precise combination of quenching and laminating processes, curved laminated glass achieves remarkable strength that surpasses conventional flat glass by 5-8 times as same specifications. Its curved configuration naturally provides greater load-bearing capacity, making it ideal for expansive glass facades and cantilevered structures.
The PVB interlayer in curved laminated glass ensures that even when broken, glass fragments remain firmly bonded, eliminating dangerous shattering. This critical safety feature makes it perfect for skylights, glass walkways, and high-rise applications where fall protection is paramount.
Available with bending radii from 800mm upwards, curved laminated glass can be customized to create stunning architectural features. The laminating process accommodates various interlayer options including colored, patterned, or even smart film interlayers for dynamic visual effects.
Engineered to withstand extreme temperature fluctuations (-40°C to 120°C), curved laminated glass maintains its structural integrity and optical clarity in diverse climatic conditions, outperforming standard curved glass solutions.
The vibration-damping properties of the PVB interlayer provide superior sound insulation (up to 50dB reduction), significantly enhancing acoustic comfort in urban environments and noise-sensitive applications.
Curved laminated glass blocks 99% of harmful UV radiation while maintaining high visible light transmission. When combined with low-emissivity coatings, it contributes substantially to a building's energy efficiency.
| Parameter | Specifications |
|---|---|
| Processing thickness | 4mm ~ 19mm |
| Maximum size | 3000mm x 6000mm |
| Minimum size | 400mm x 600mm |
| Min Radius | 900mm for curved tempering process |
| Glass color | clear, ultra clear, grey, bronze, blue, green, etc. |
| Additional process | ceramic frit; coated; frosted; acid etched; etc |
| Transmittance | 8 ~ 85% |
| Shape | curved |
| Capacity | 2500 SQM / DAY |
| Curved glass types | Curved tempered glass, curved laminated glass, curved insulated glass, curved low e insulated glass, curved ceramic frit glass, curved fluted glass, curved pdic glass, etc. |
The minimum bending radius is typically 900mm for the curved tempering process, though customized configurations can accommodate radii from 800mm upwards depending on the glass thickness and specification requirements.
Due to the tough PVB (polyvinyl butyral) interlayer, broken glass fragments stick securely to the plastic film rather than falling or shattering into dangerous pieces. This keeps the glass pane in place and prevents fall hazards.
We offer processing thicknesses ranging from 4mm up to 19mm. The maximum achievable size is 3000mm x 6000mm, while the minimum size is 400mm x 600mm.
Yes. Curved laminated glass is capable of blocking up to 99% of harmful UV rays. When combined with low-emissivity (Low-E) coatings, it significantly enhances a building's overall insulation and energy efficiency profile.
Absolutely. The PVB interlayer features exceptional vibration-damping properties, which provide high-quality sound insulation. It can reduce external noise levels by up to 50 decibels (dB).
Options include clear, ultra-clear, grey, bronze, blue, and green. Custom processes such as ceramic frit, low-e coating, acid etching, frosting, and smart/pdlc configurations are also fully supported.
